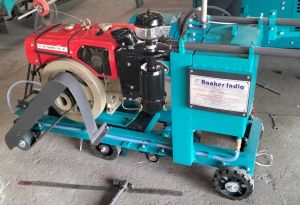

Concrete Groove Cutting Machine

We are manufacturing the below mentioned all model Groove Cutter Machine. many Customers saying Road Cutter also. Both are same & standard items use to make. Every model has different cutting depth capacity.only the Engine & cutting blade will change in all model.

Details :

• 5HP Diesel Engine based Road cutter(Asphalt and Concrete Cutter)
• 10HP Diesel Engine Based Road Cutter(Asphalt and Concrete Cutter)

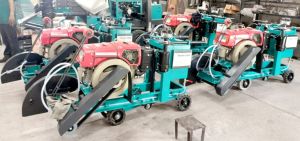

• 13HP Diesel Engine Heavy Duty Road cutter machine. The 10HP Diesel Greaves Engine fitted Road Cutter Machine is very successfully in India Road Contractors. Easily use in Groove Cutter.

Technical Data (10HP Diesel Engine Greaves make fitted) :

• Engine Type & Power - 10 HP Diesel Engine Greaves Make
• Transmission - V Belt Drive
• Blade Size - ¾ 50 x ¾ 600 x 5mm ( 24")
• Cutting Method - Rack & Pinion ( Up & Down, Forward & Reverse )
• Water Tank - Capacity 50 Ltr.
• Cutting Depth Of Road - 150 MM & Width 5 to 7 MM
• Cutting Speed - 25 to 35 Mtr / Hour ( For 150 mm depth)
• Weight - 215 Kgs
• Overall Dimension - L X W X H ( 1.5 X 0.8 X 1.0Meter)
• Moving System For Easy moving Machine by one person only
