Ranker India Spares & Services

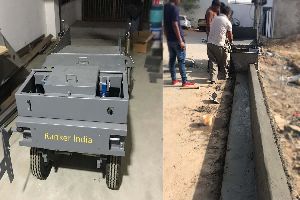

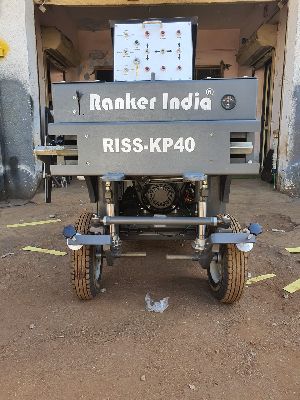

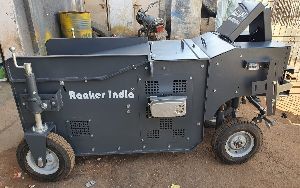

Kerb Laying Machine

Kerb Laying Machine


Type Kerb Laying Machine
Certification ISO 9001:2008
Application Construction Use
Weight 800-900kg
Color Grey
Condition New
Automatic Grade Semi Automatic
Driven Type Mechanical
Warranty 1year
engine power 0-20BHp
Engine 16 Hp Petrol Engine
Steering Control Auto/manual
Height Control Auto/Manual
Hydraulic Pump Variable Displacement Axial Pump
Drives Main Drive Duplex Chain / Hydraulics- V Belt
Solenoid Valves 12 V Dc
Compaction Method By Ramming Mechanism
Minimum Radious of Kerb 2.4 Mtr
Laying Capacity (W X H) 600 X 500 Mm Max. & 175 X 500
Laying Speed 80 Mtr /hour ( Continuous Feeding Material)
Stroke / Min 25 Max.
Size Of Tyres 4.00 X 8.00 (6 Ply - 4 Nos.)
Diesel Tank Capacity 8.5 Ltrs
Hydarulics Tank Capacity 6.5 Ltrs
Slump Range Zero Slump
Details of Vibrators Nil
Fuel (diesel ) Consuption 1.6 Ltrs Diesel / Hour
Length ( Without Mould ) 1945 Mm
Lenghth ( with Mould ) 2715 Mm

Additional Information

Min. Order Quantity 1 Set(s)
Port Any India Port
Payment Terms L/C, D/A, D/P, T/T
Delivery Time 06 to 07 Days
Packaging Details Open
  1. Rate :6,00,000/-Rs. +18% GST +Freight
  2. NOTE :  One Kerb Mould, String line assembly , Tools kit..etc with machine.
  3. For detail offer call on this Phone NO : +91 99094 95508, Email : info@rankerindia.com
  4. Quotation Validity : 15 Days only.
  5. Subject to Mehsana, Gujarat jurisdiction only.
  6. others terms will clear to you in final proforma Invoice.
